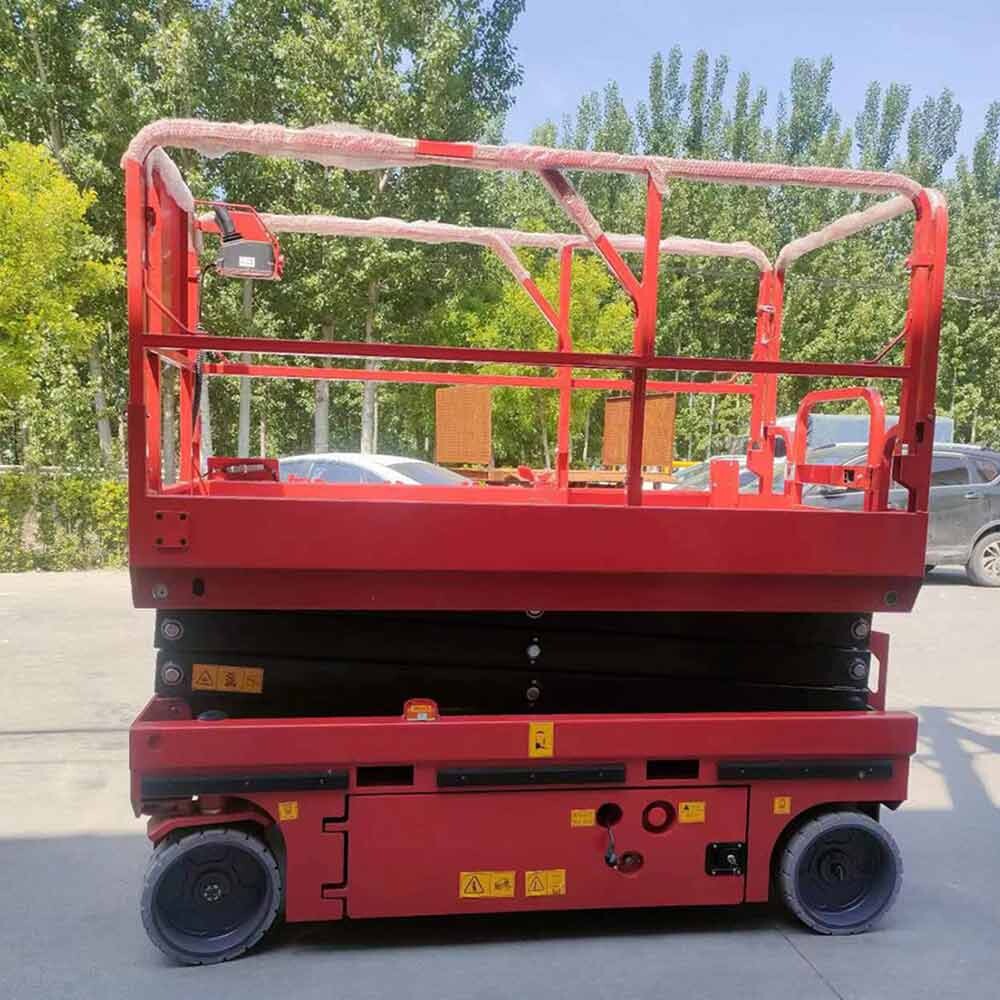

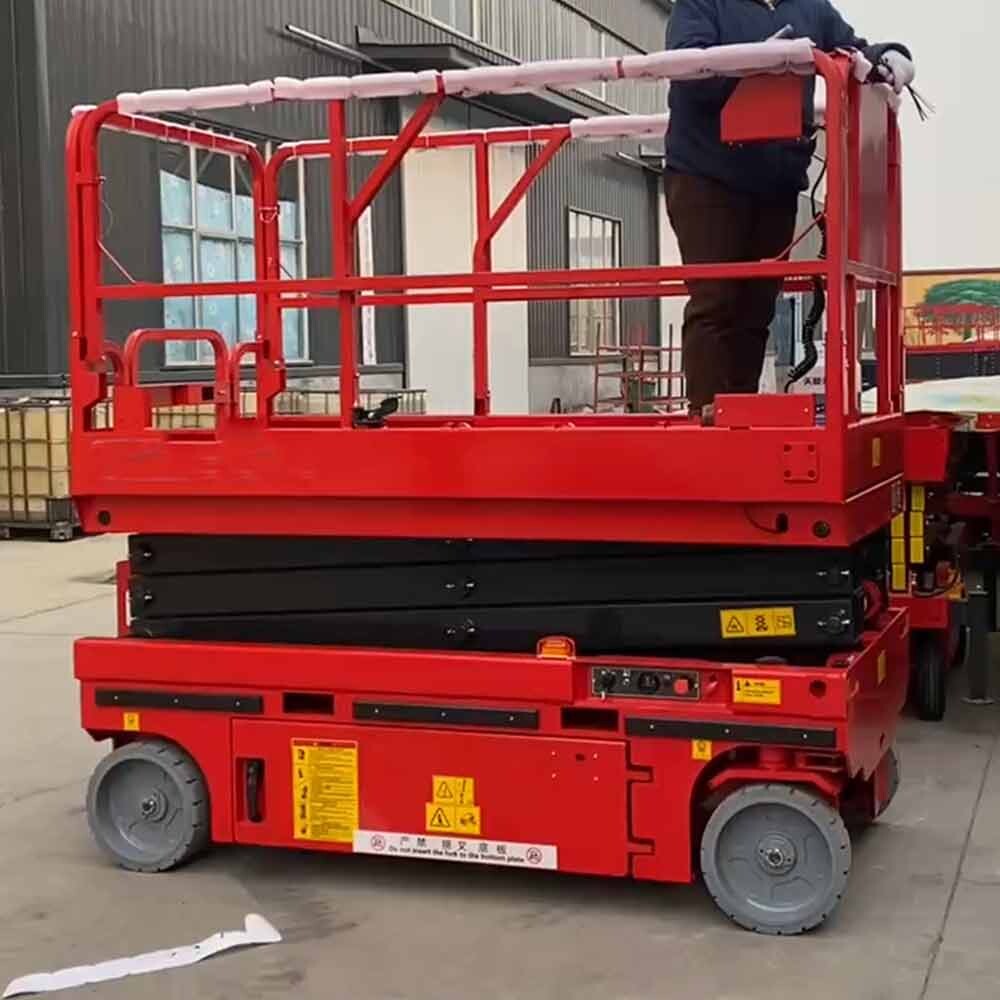

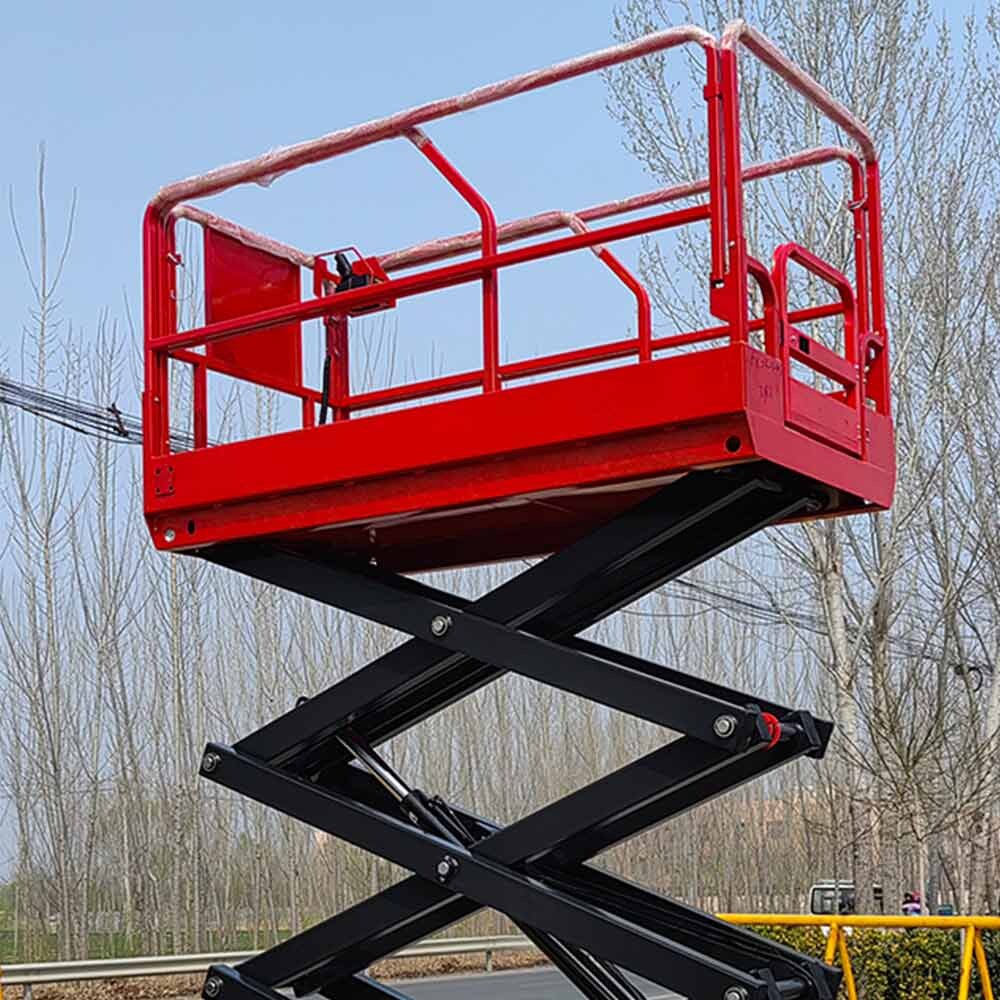

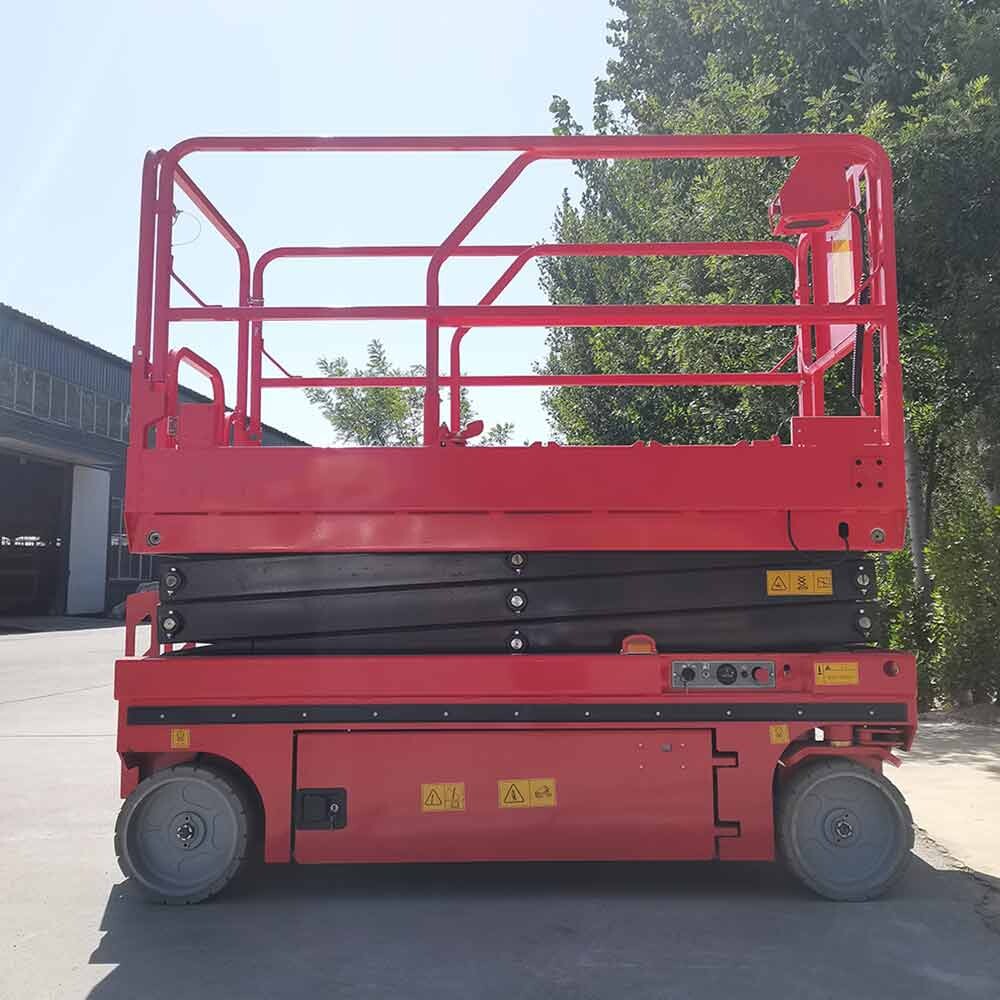

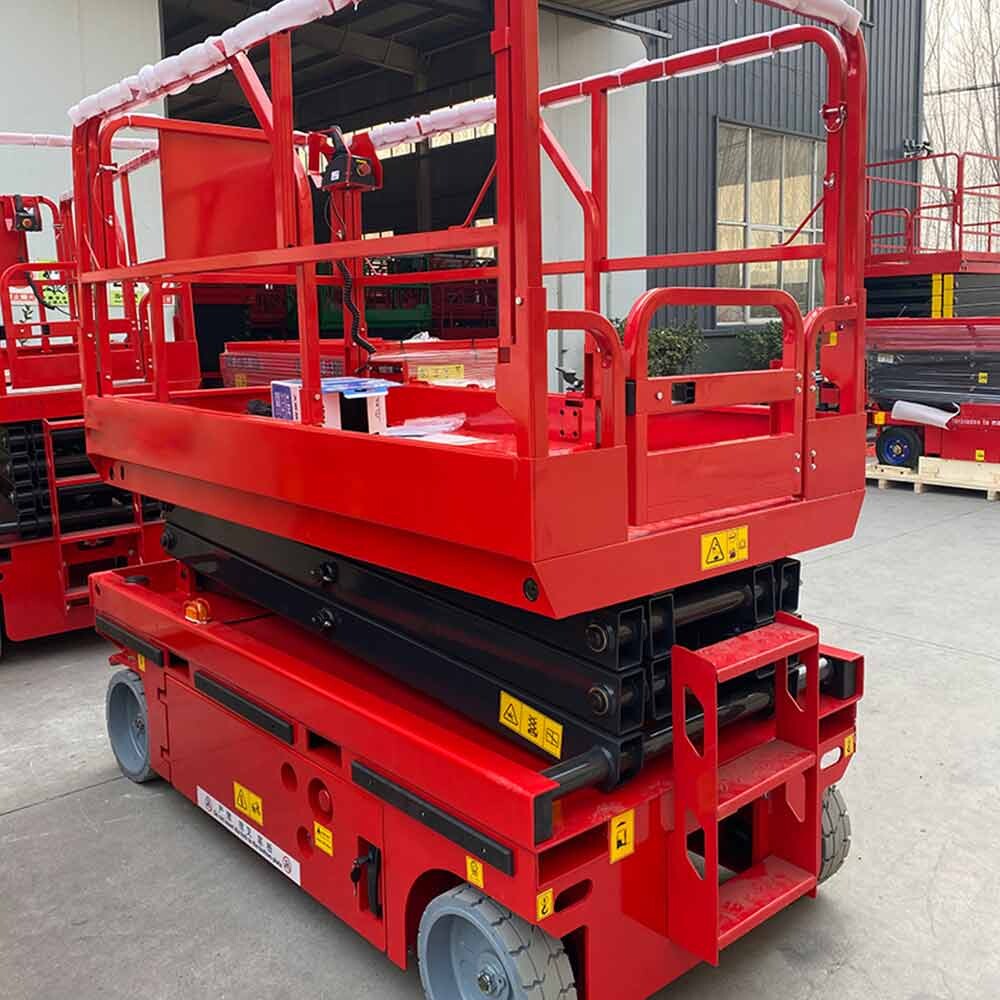

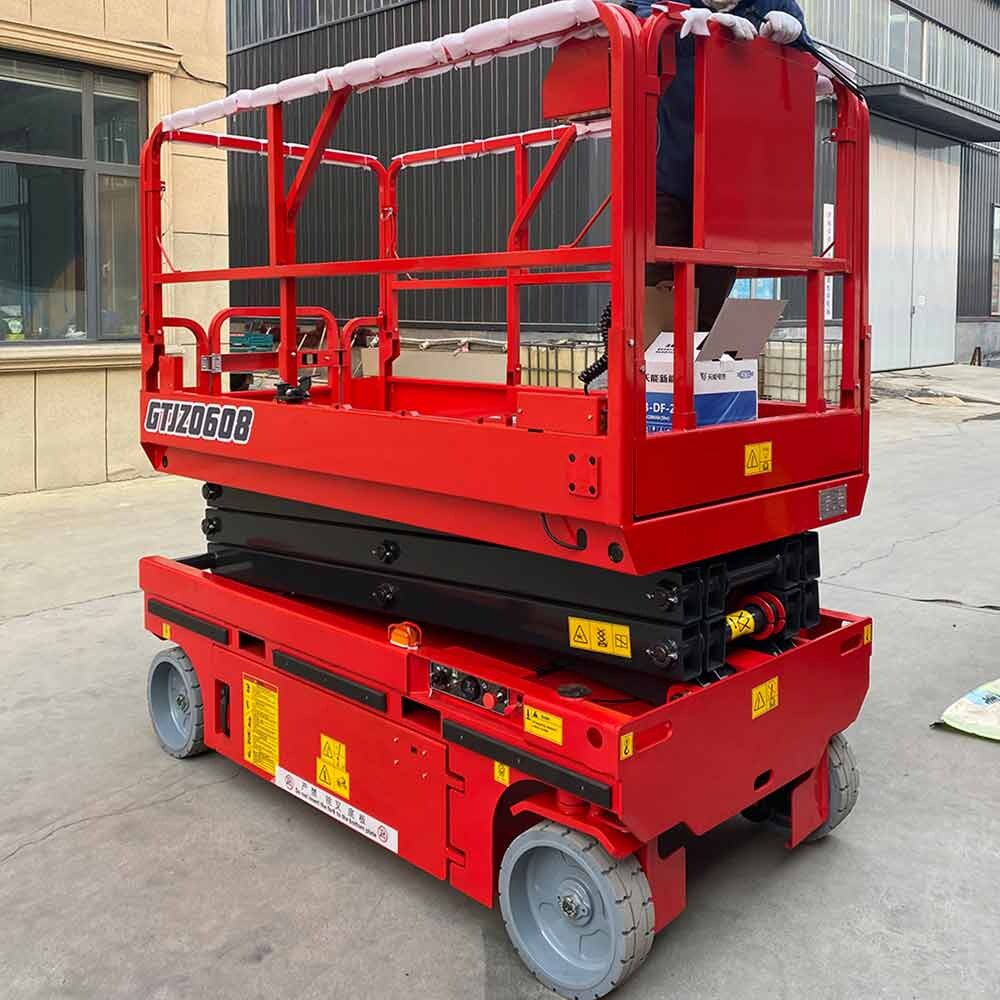

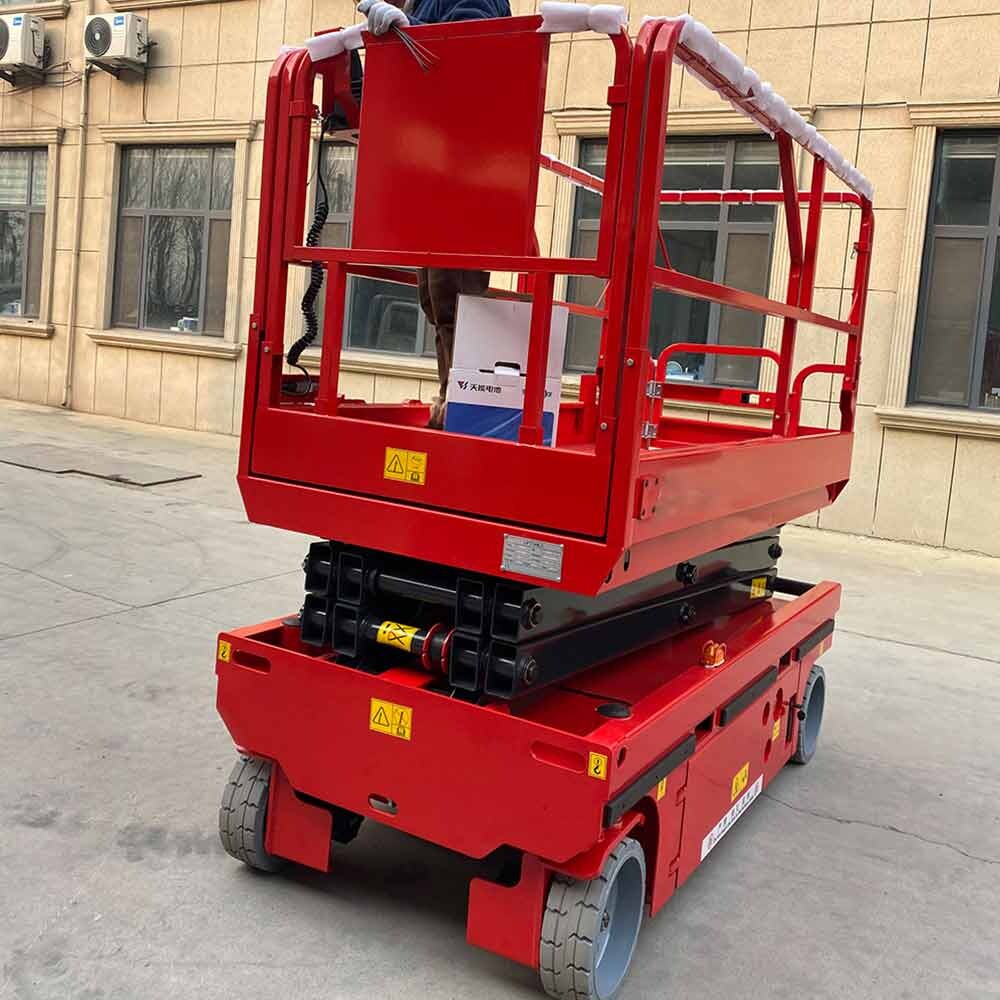

Electric lifting platforms are modern equipment widely used in industrial, commercial and public areas for safe and efficient vertical transportation of goods and personnel. Our lifting platforms can be customized according to different needs and locations, providing flexible solutions to help improve work efficiency while ensuring safety and convenience during use. At present, we can provide 4m-14m electric lifting platform.
Product Feature
*Safety protection:
(1)Explosion-proof valve: protects the hydraulic pipe and prevents it from rupturing.
(2)Overflow valve: prevents high pressure from being generated when the machine is rising. Regulates pressure.
(3)Emergency descent valve: allows descent in case of emergency.
(4)Phase loss and phase mismatch protection.
(5)Overload protection
(6) Safety railing
*Lifting power: AC, DC or diesel are available to ensure smooth ascent and descent.
*Space saving: Compact design; fits in limited spaces, maximizes vertical usage; customizable height, load, size.
*Easy operation: Simple control panel; easy operation; quick mastery of usage method.
*Durability: Our lifting platforms are made of sturdy and durable materials with a long service life and good stability.
| Model | XT-06L |
| Maximum working height | 7.8m |
| Maximum platform height | 5.8m |
| Safe working load | 230kg |
| Safe working load of extended platform | 113kg |
| Working platform dimensions (length × width) | 1670mm×780mm |
| Overall dimensions of the machine (length × width × height, | 1820mm×780mm×2020mm |
| Guardrails not folded) | 1820mm×780mm×1615mm |
| Overall dimensions of the machine (length × width × height, | 800mm |
| Guardrails folded) | 106mm/29mm |
| Extended dimensions of the table | 1357mm |
| Minimum ground clearance | 0/2m |
| Wheelbase | 1.6KW/0.5KW |
| Turning radius (inner wheel/outer wheel) | 3-5m/min |
| Lifting/drive motor | 3.5km/h |
| Lifting speed | 0.8km/h |
| Machine travel speed (folded state) | 4×6V/200AH |
| Machine travel speed (lifted state) | 24V |
| Battery | 25% |
| Charger | 1.5°/3° |
| Maximum gradeability | Φ305×100mm |
| Maximum allowable working angle | 1200kg |
| Tire | Φ230×80mm |
| Machine weight | 860kg |
