Features

Series Code: F

Model：XT1304(F)/XT1404(F)/XT1504(F)/XT1604(F)/XT1604(F)

• This series match 130-180HP, chassis is larger and more stable

• Helical gear meshing structure, meshing more smoothly

• 16F+8R gearbox with creeper, min. speed 0.4KM/H

• 300L fuel tank extends working time and improves work efficiency

• Hydraulic disc brake, large braking force, strong resistance to thermal decay

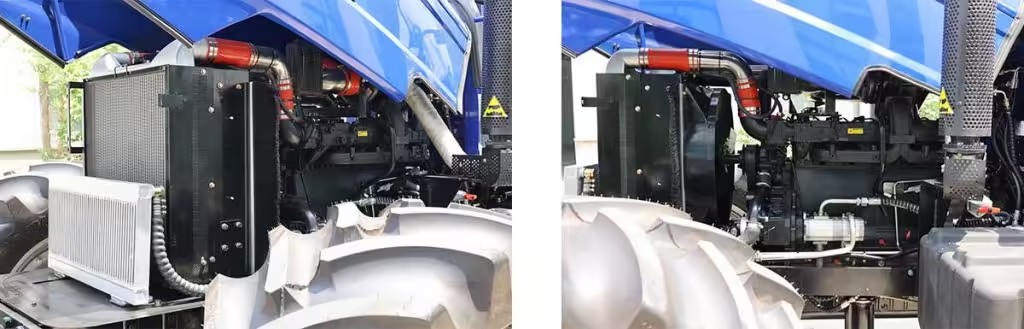

Engine

• Standard YTO Brand, optional Yuchai and Weichai brand
• Power reserve ≥20%, torque reserve 25%~30%, more powerful
• Desert air filter with more advanced performance
• With ECU, precise control of fuel injection volume improves fuel efficiency.
• 14-inch dry type dual stage clutch makes shifting smoother

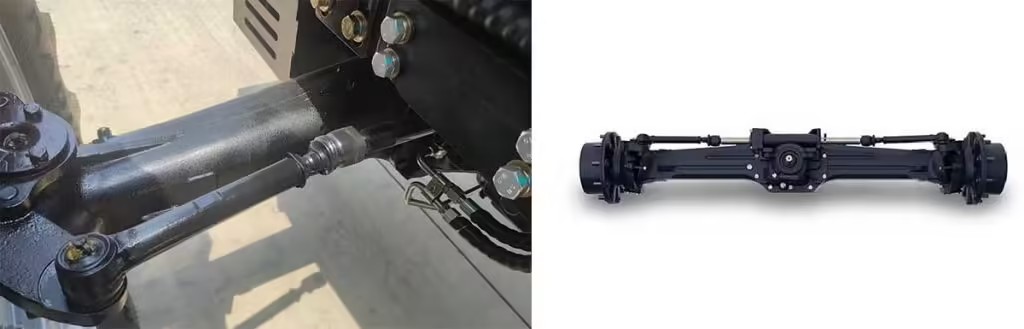

Front Axle

• Expandable functions, optional limited-slip differential

• Four-stage reduction, optional differential lock for central transmission

• Center-mounted cylinder,Independent oil circuit fully hydraulic steering, steering angle ≤50°

• Increase the ground clearance to improve the tractor’s passability

• Max. load capacity ≤2600KG, strong and sturdy

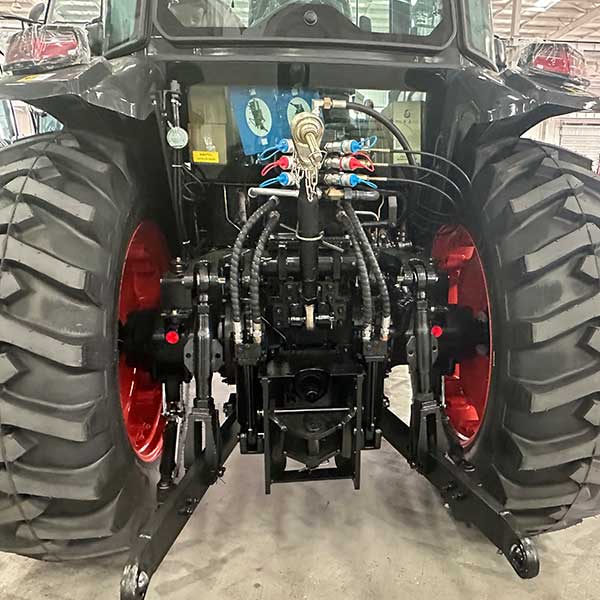

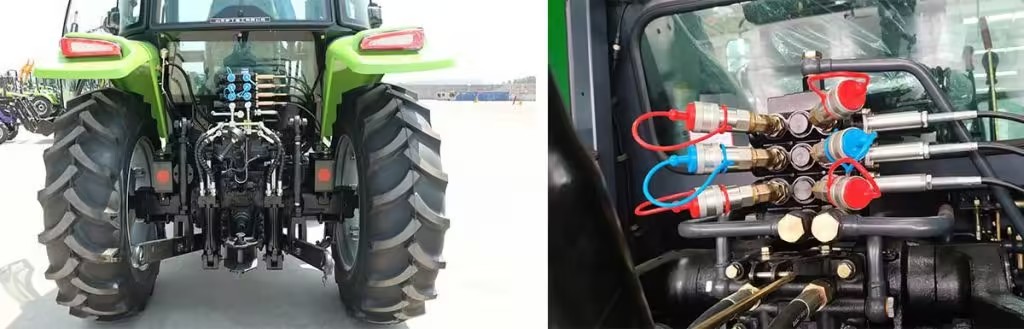

Rear Working System

• Hydraulic 3-point linkage cat II, Max. lift capacity 3000KG

• Standard 3 pair hydraculic output to match different implements

• U type traction, optional swing drawbar, use for trailer

• PTO Speed 540/1000 or 760/1000, Ø35, 6 Rectangular Spline

• DAYE brand gear pump, hydraulic flow 44-52L

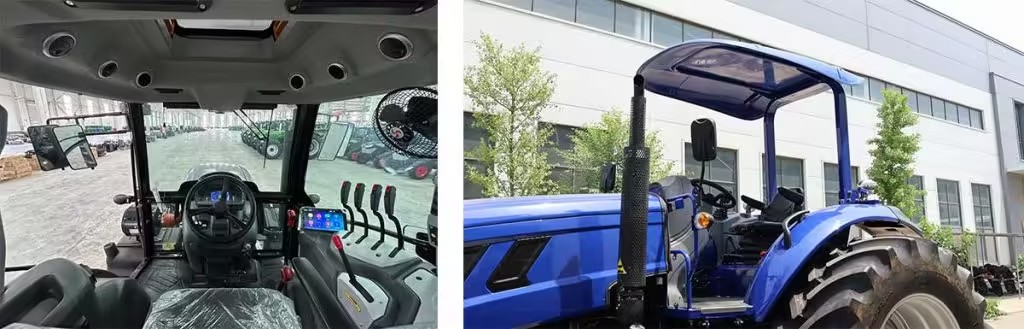

Driving Position

• Aviation-grade air cushion seat, wider cushion, higher comfort

• 10-inch reverse camera, available in 8 languages

• Hydraulic clutch pedal reduces driving fatigue

• Independent handbrake, better parking effect and higher safety

• LED digital dashboardl, give you a car-level driving experience

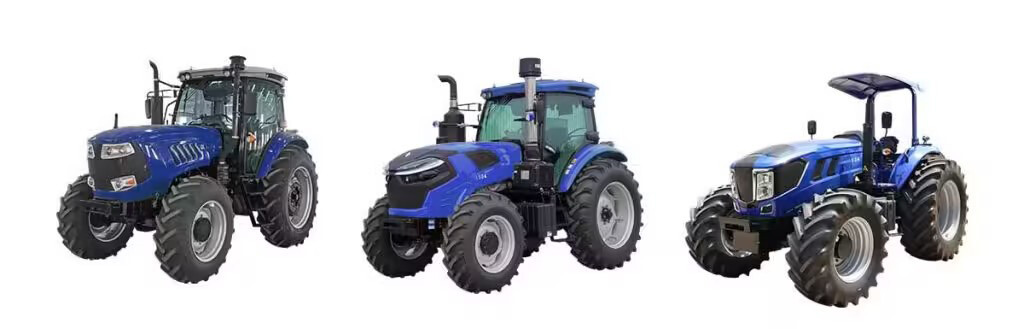

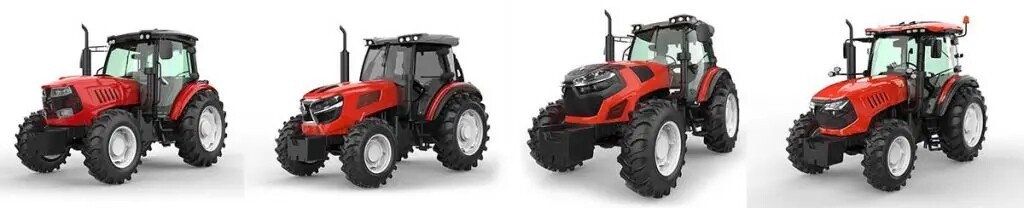

Common Engine Hood Style

• ZYZKION Hornet No. 1

• ZYZKION Hornet No. 2

• ZYZKION Hornet No. 3

• ZYZKION Hornet No. 1X

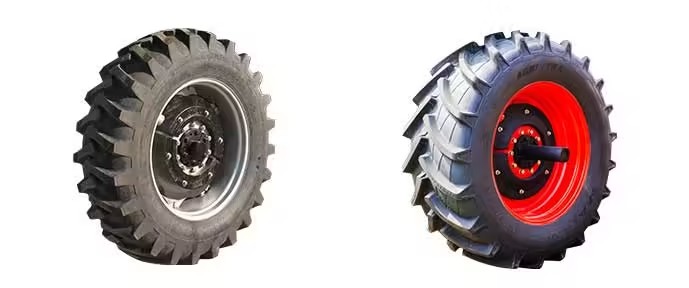

Optional Tire Type

• R-1,Flat pattern tire

• R-1W,Radial Tire
