Features

Series Code: C

Model：XT180(C)

• This series match 180-260HP, chassis is larger and more stable

• Helical gear meshing structure, meshing more smoothly

• 16F+16R shuttle shift with synchronizer, optional 32F+32R shift

• 440L fuel tank extends working time and improves work efficiency

• Hydraulic disc brake, large braking force, strong resistance to thermal decay

Engine

• Standard Weichai Brand, optional Yuchai/YTO/Shangchai brand

• Power reserve ≥20%, torque reserve 25%~30%, more powerful

• Desert air filter with more advanced performance

• Turbocharged or intercooled, choose according to the working environment

• LUK brand 17-inch wet type dual stage clutch, reduces shifting shock

Front Axle

• Using universal joint drive shaft, large transmission torque and high reliability

• Four-stage reduction, optional differential lock for central transmission

• Center-mounted cylinder,Independent oil circuit fully hydraulic steering, steering angle ≤50°

• Increase the ground clearance to improve the tractor’s passability

• Max. load capacity ≤3300KG, strong and sturdy

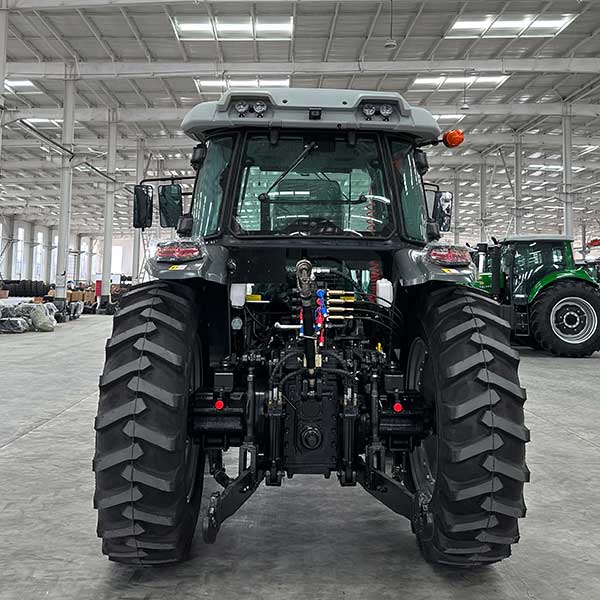

Rear Working System

• Hydraulic 3-point hitch cat III with quick hitch

• Standard 3 pair hydraculic output，optional electronically controlled hydraulic system

• U type traction, optional swing drawbar, use for trailer

• PTO Speed 540/1000 or 760/1000, Ø35, 6 Rectangular Spline

• DAYE brand gear pump, hydraulic flow 60L

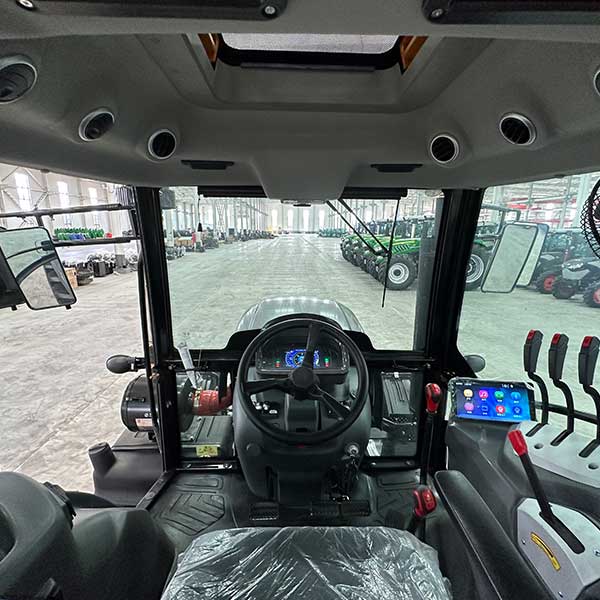

Driving Position

• Aviation-grade air cushion seat, wider cushion, higher comfort

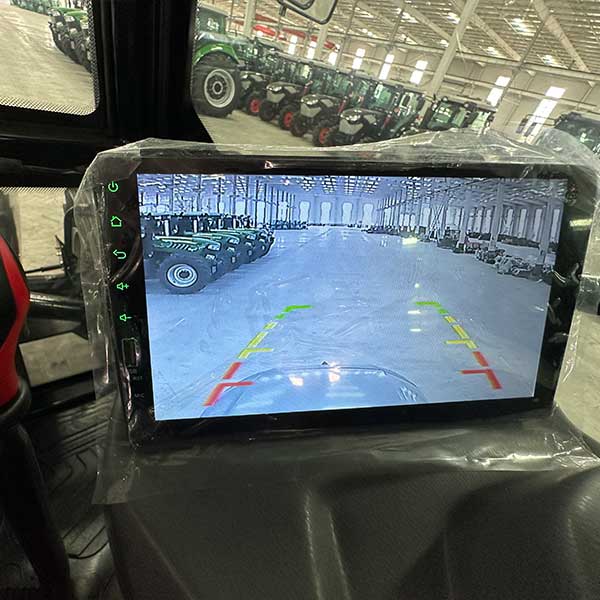

• Optional 360° driving camera reduce blind spots and improve driving safety

• Hydraulic clutch pedal reduces driving fatigue

• Independent handbrake, better parking effect and higher safety

• Silent interior design, added sound insulation materials, and excellent sealing

Common Engine Hood Style

• ZYZKION Hornet No. 1

• ZYZKION Hornet No. 2

• ZYZKION Hornet No. 3

• ZYZKION Hornet No. 1X

Optional Tire Type

• R-1,Flat pattern tire

• R-1W,Radial Tire
