Disc Harrow
Email : gloria@xingtuintell.com
Whatsapp : +86 15689408915

The company has sufficient inventory and can be picked up at any time.

Product Description

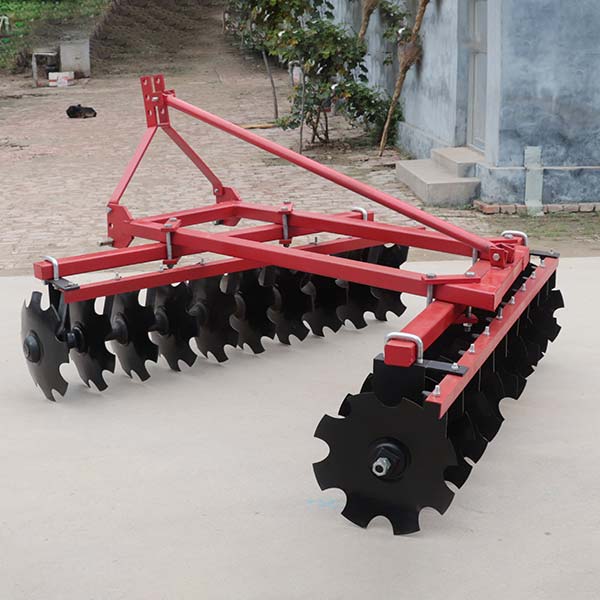

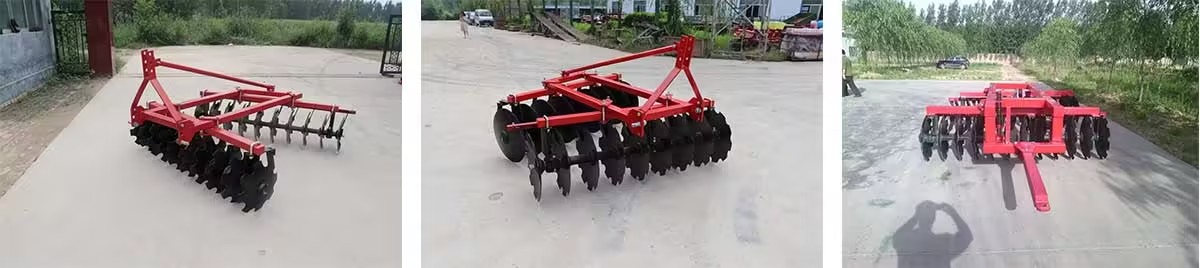

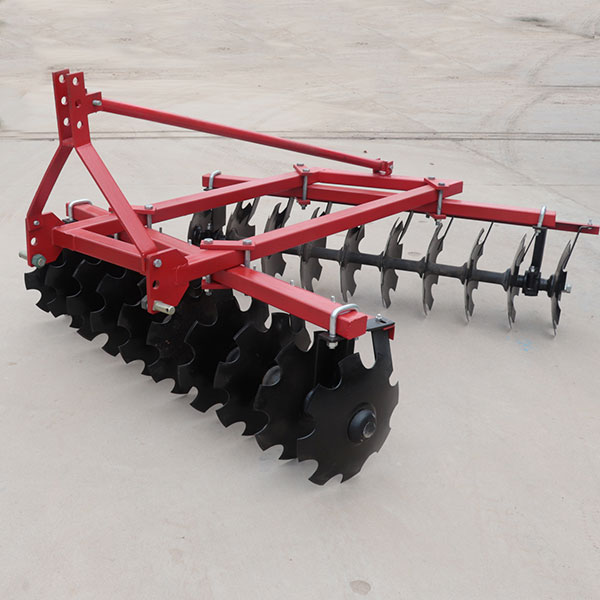

Light Duty Disc Harrow

ParameterLight Duty Disc Harrow
Model1BQX-1.11BQX-1.31BQX-1.51BQX-1.71BQX-1.91BQX-2.2
Width of cut (mm)110013001500170019002200
Depth of cut (mm)120
Dia. of disc (mm)460
Q’ty of disc121416182024
Weight (kg)200220240260310360
Tractor power (hp)18~2420~2525~3035~5050~6055~70
Mounted cat3 point cat I3 point cat II

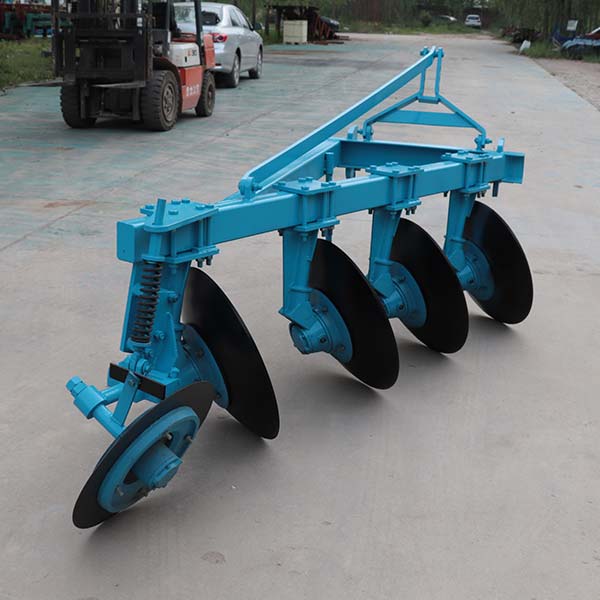

Heavy Duty Disc Plough

ParameterHeavy Duty Disc Plough
Model1BZ-1.81BZ-2.21BZ-2.51BZ-3.01BZ-3.41BZ-4.0
Width of cut (mm)180022002500300034004000
Depth of cut (mm)200
Dia. of disc (mm)660
Q’ty of disc162024283236
Weight (kg)116013501500160019002300
Tractor power (hp)70~8080~9090~100100~110110~120140
Mounted cat3 point cat II

Features

Disc Harrow



  • According to the weight and connect method, it can be divided into suspended light duty disc harrow and traction heavy duty disc harrow. The light duty disc haaow is mainly suitable for crushing soil after plowing, preparing soil before sowing, loosening soil, mixing soil and fertilizer and stubble removal. Heavy duty disc harrow have strong farming capabilities for heavy clay soil, wasteland and plots with lots of weeds. They are mainly suitable for clearing stubble before farming, breaking surface hardening, cutting straw and returning it to the field, breaking soil after tilling, and leveling to preserve moisture.
