Shandong Xingtu Intelligent Equipment Co., Ltd

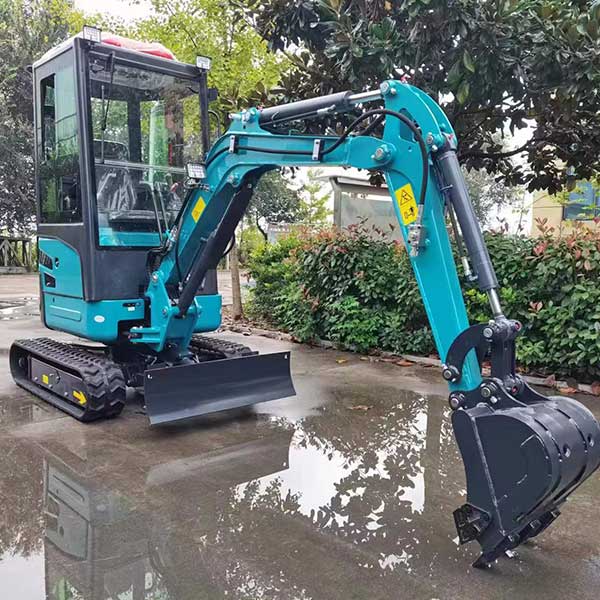

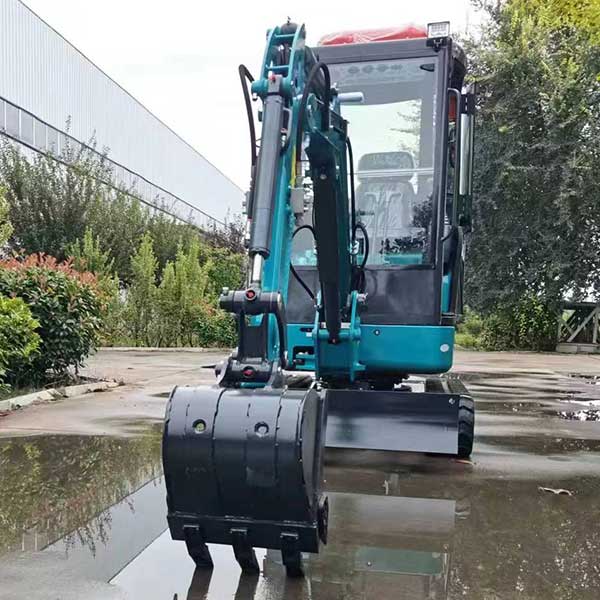

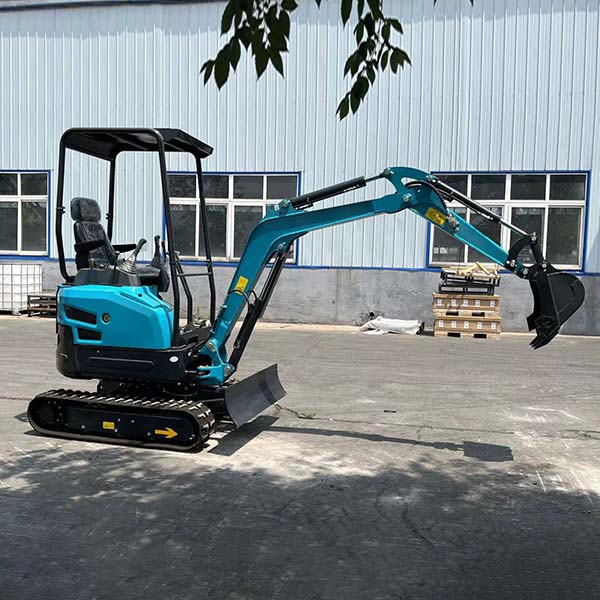

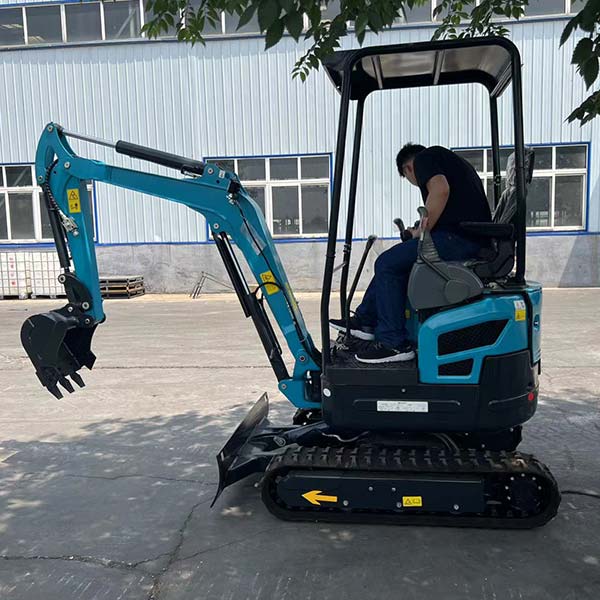

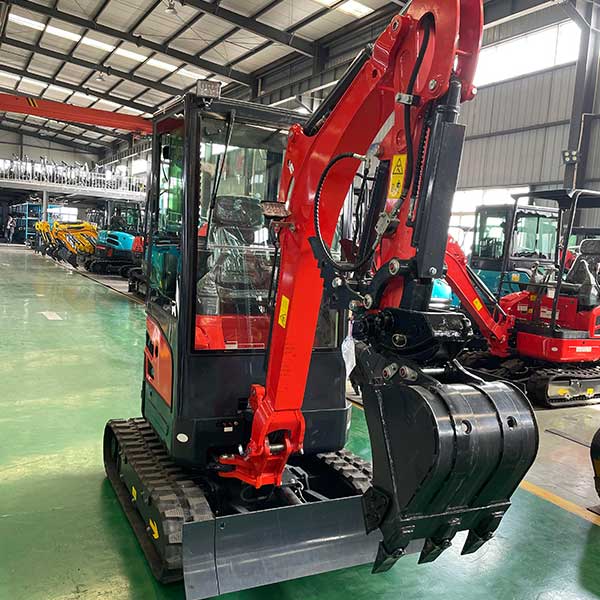

1.7ton

The company has sufficient inventory and can be picked up at any time.

Product Description

Model	XT-17PRO
Operating Weight（KG）	1700
Total Length(mm)	3300
Total Width(mm)	1110
Total Height(mm)	2360
Buldozer blade Width(Shrinkage/stretch)(mm)	1110
Bulldozer blade Height(mm)	270
Clawler centerdistance(mm)	883
Clawler length(mm)	745
Crawler width(mm)	230
Standardbucket width(With/without edge tooth)(mm)	440（400）
Wheel spacing(mm)	1120
Boom height（mm）	2635
Max.Digging Height(mm)	3310
Max.Dumping Height(mm)	2370
Max. Digging Depth(mm)	2120
Maximum depth of vertical arm excavation(mm)	1535
Max.Diggingdistance(mm)	3640
Mini. Turning radius offront end(mm)	1660
Max.Digging distance on the ground(mm)	3570
Max.Bulldozingheight(mm)	260
Max.Bulldozing depth(mm)	190
Bucket Capacity（m³）	0.04
Engine	Kubota
Displacement L（cc）	0.898
Rated Power（KW/rpm）	11.8
Swing speed（r/min）	9
Gradeability（°）	58(30)
Ground pressure（kpa）	27
Bucket digging force（Kn）	13.8
Fuel tank capacity（L）	18

The XT-17PRO delivers reliable power and efficiency for medium-duty excavation tasks.

XT-17PRO (1.7 Ton) Key Selling Points：

*Powerful Performance: Kubota engine (11.8KW) with 13.8KN bucket digging force.

*High Efficiency: Max digging height (3310mm), depth (2120mm), and 0.04m³ bucket capacity.

*Stable & Durable: 230mm crawler width and 27kpa ground pressure for tough terrains.

*Long Operation Time: 18L fuel tank for extended work sessions.

*Excellent Climbing: 58° gradeability for steep slopes.
