Shandong Xingtu Intelligent Equipment Co., Ltd

1ton

The company has sufficient inventory and can be picked up at any time.

Product Description

Model	XT-10PRO
Operating Weight（KG）	1000
Total Length(mm)	2600
Total Width(mm)	860
Total Height(mm)	1480
Buldozer blade Width(Shrinkage/stretch)(mm)	860
Bulldozer blade Height(mm)	210
Clawler centerdistance(mm)	680
Clawler length(mm)	1200
Crawler width(mm)	180
Standardbucket width(With/without edge tooth)(mm)	360(310)
Wheel spacing(mm)	670
Platform ground clearance(mm)	370
Max.Digging Height(mm)	2580
Max.Dumping Height(mm)	1830
Max. Digging Depth(mm)	2000
Maximum depth of vertical arm excavation(mm)	1600
Max.Diggingdistance(mm)	2850
Mini. Turning radius offront end(mm)	1290
Max.Digging distance on the ground(mm)	2700
Max.Bulldozingheight(mm)	260
Max.Bulldozing depth(mm)	190
Bucket Capacity（m³）	0.022
Engine	KOOP 192FA
Displacement L（cc）	0.499
Rated Power（KW/rpm）	8.2
Swing speed（r/min）	11
Gradeability（°）	25(30)
Ground pressure（kpa）	0.35
Bucket digging force（Kn）	6.5
Fuel tank capacity（L）	5.5

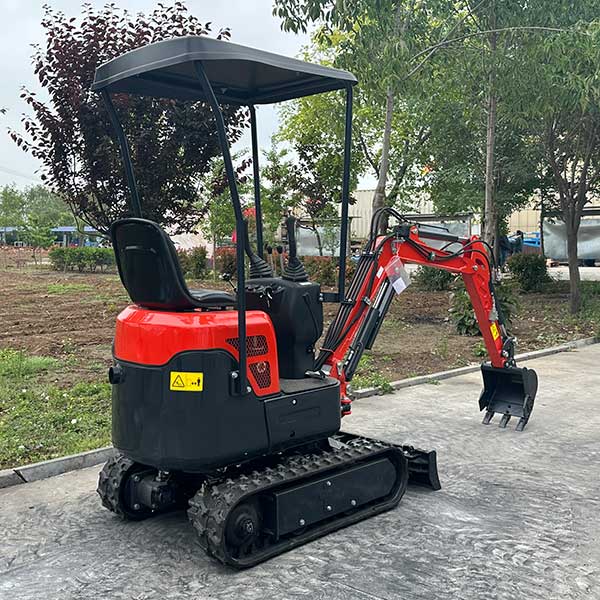

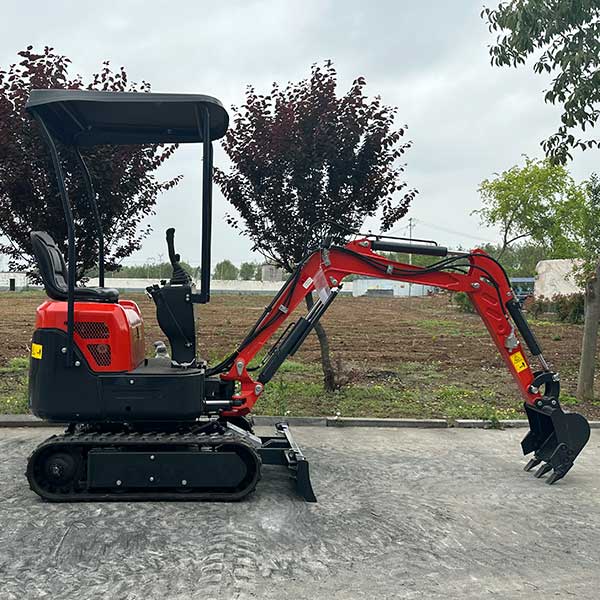

The XT-10PRO is the ideal compact excavator for tight spaces, balancing agility and performance.

XT-10PRO (1 Ton) Key Selling Points:

*Ultra-Compact Design: Only 1000kg operating weight and 2600×860×1480mm dimensions, perfect for confined spaces.

*Efficient Digging: Max digging height (2580mm) and depth (2000mm) for small-scale projects.

*Fuel-Efficient: KOOP 192FA engine (8.2KW) with a 5.5L fuel tank for low consumption.

*Versatile Attachments: Bulldozer blade (190mm depth) + 0.022m³ bucket for multi-purpose use.

*High Maneuverability: Minimal turning radius (1290mm) and 25° gradeability.
