Shandong Xingtu Intelligent Equipment Co., Ltd

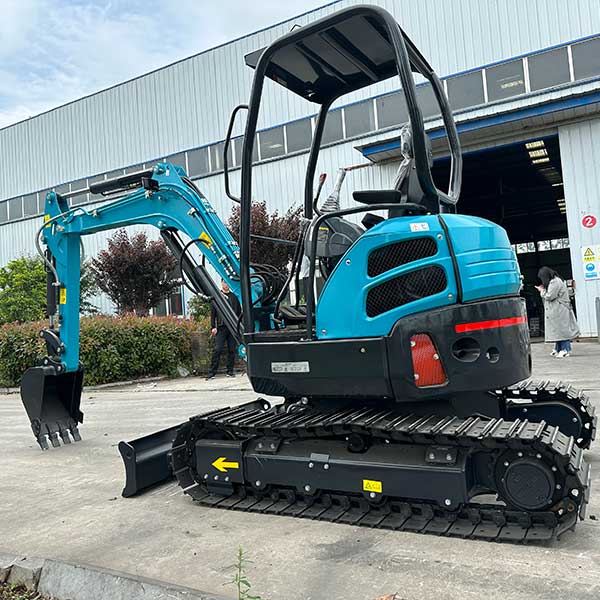

3ton

The company has sufficient inventory and can be picked up at any time.

Product Description

Model	XT-30PRO
Operating Weight（KG）	3000
Total Length(mm)	4485
Total Width(mm)	1550
Total Height(mm)	2440
Buldozer blade Width(Shrinkage/stretch)(mm)	1550
Bulldozer blade Height(mm)	335
Clawler centerdistance(mm)	1250
Clawler length(mm)	2100
Crawler width(mm)	300
Standardbucket width(With/without edge tooth)(mm)	520(470)
Wheel spacing(mm)	1665
Max.Digging Height(mm)	4600
Max.Dumping Height(mm)	3175
Max. Digging Depth(mm)	2880
Maximum depth of vertical arm excavation(mm)	2305
Max.Diggingdistance(mm)	4965
Mini. Turning radius offront end(mm)	2035
Max.Digging distance on the ground(mm)	4845
Max.Bulldozingheight(mm)	360
Max.Bulldozing depth(mm)	340
Bucket Capacity（m³）	0.09
Engine	Yanmar 3TNV88-BSSY
Displacement L（cc）	1.64
Rated Power（KW/rpm）	19.6
Swing speed（r/min）	8.5
Gradeability（°）	58(30)
Ground pressure（kpa）	28.4
Bucket digging force（Kn）	26.5
Fuel tank capacity（L）	40

The XT-30PRO excels in power and capacity for professional-grade excavation.

XT-30PRO (3 Ton) Key Selling Points：

*High-Performance Engine: Yanmar 3TNV88-BSSY (19.6KW) with 26.5KN bucket force.

*Exceptional Digging: Max height (4600mm) and depth (2880mm) for large-scale projects.

*Large Bucket (0.09m³): Handles heavy loads with ease.

*Stable on Slopes: 58° gradeability and 300mm crawler width.

*Extended Fuel Capacity: 40L tank for uninterrupted work.
